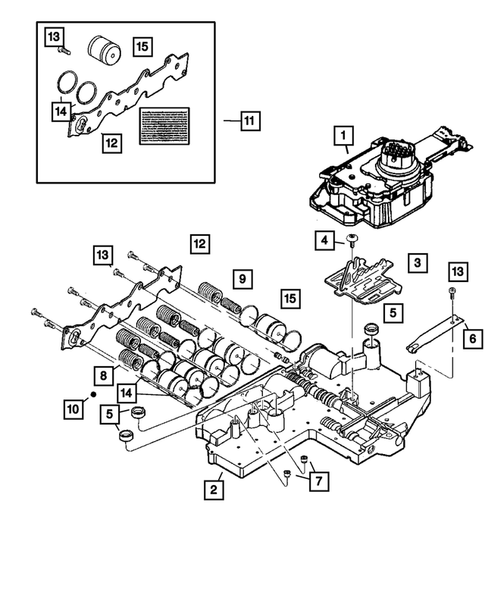

Valve Body for 2005 Jeep Grand Cherokee
No.
Part # / Description / Price
Price
N/A
Transmission Valve Body Plate
Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
$25.55
$25.55
1
Transmission Solenoid Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: White Connector. Includes Transmission Range Sensor (TRS).
$587.00
$587.00
2
Valve Body Assembly, Remanufactured 1 Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: NONE
$1,190.00
$1,190.00
2
Valve Body Assembly 1 Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: NONE
3
$49.65
4
Shoulder/Truss Screw Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: M5x.8x12.5. Manual Valve Cam Plate.
$40.15
$40.15
5
$3.45
6
Valve Body Detent Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Use 10/05/02 and after.
$15.70
$15.70
7
$10.25
8
Accumulator Spring Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: [OD spring]. Trans. With pk # [04800424ac]. 2nd & 4th Accumulator, Outer. [LR spring]. After 5/16/2002.
9
Accumulator Spring Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Same Part Number Is Used For All Six Springs. With pk # [04800343aa]. Trans. Accumulator, Low and Reverse, Inner. Overdrive.
$39.55
$39.55
11
Accumulator Cover Accumulator Kit Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Includes 1 piston, 1 cover and 7 screws.
$67.40
$67.40
12
$8.15
13
Pan Head Screw Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: M5 x 0.8 x 12.60. Accumulator Cover. Valve Body Detent. Fwd. Oil Filter To Transfer Plate. Sump Filter. Oil Filter to Transmission. Vavle Body Detent.
$1.75
$1.75
14
Accumulator Seal Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Fwd. Same Part Number Is Used For All Twelve Seals. Second & Fourth. Second & Forth. Serviced With Valve Body. Trans Accumulator. Seals Bonded To Pistons. Serviced with piston, Seal Is Bonded.
$9.15
$9.15
15
Accumulator Piston Mopar
Mopar Notes: Transmissions: 5-SPD AUTOMATIC 545RFE TRANSMISSION.
Description: Includes piston seals. Seals are bonded to the piston. Fwd. Same Part Number Is Used For All Six Pistons. Seals Bonded To Pistons. Pistons seals are bonded.
$41.55
$41.55
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
