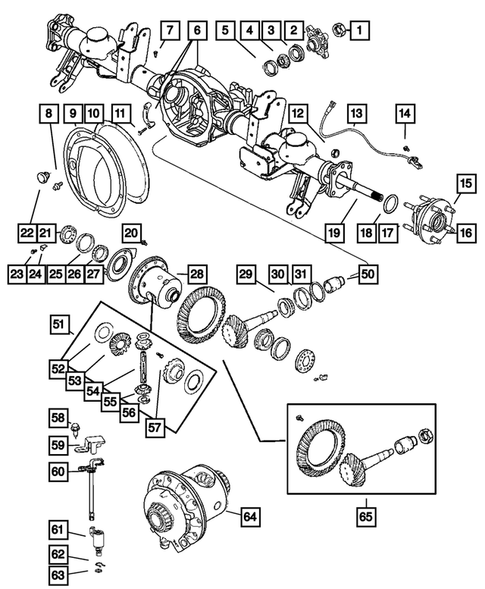

Differential and Housing for 2005 Jeep Grand Cherokee

N/A

Drive Pinion Bearing Shim

3723537

Mopar

Description: .037.

View Details

N/A

Core Plug, Cylinder Block

6034804AB

Mopar

Description: Axle Shaft Flange Plug. Id=m32.26 od=35.00 thick=1.37. 1.39 diameter. [id=m32.26 od=35.00 thk=1.37]. Front Crankcase Cavity Block Off. For Engines Without Cylinder Block Heater Only. Water Jacket. For Vehicles Without Cylinder Block Heater Only.

$6.80

N/A

Drive Pinion Bearing Shim

3723534

Mopar

Description: .034.

View Details

N/A

Drive Pinion Bearing Shim

3723536

Mopar

Description: .036.

View Details

N/A

Drive Pinion Bearing Shim

3723535

Mopar

Description: .035.

View Details

N/A

Drive Pinion Bearing Shim

3723527

Mopar

Description: .027.

View Details

N/A

Drive Pinion Bearing Shim

3723531

Mopar

Description: .031.

View Details

N/A

Drive Pinion Bearing Shim

3723522

Mopar

Description: .022.

View Details

N/A

Drive Pinion Bearing Shim

3723533

Mopar

Description: .033.

View Details

N/A

Drive Pinion Bearing Shim

3723530

Mopar

Description: .030.

View Details

N/A

Drive Pinion Bearing Shim

3723526

Mopar

Description: .026.

View Details

N/A

Drive Pinion Bearing Shim

3723538

Mopar

Description: .038.

View Details

N/A

Drive Pinion Bearing Shim

3723524

Mopar

Description: .024.

View Details

N/A

Drive Pinion Bearing Shim

3723529

Mopar

Description: .029.

View Details

N/A

Drive Pinion Bearing Shim

3723532

Mopar

Description: .032.

View Details

N/A

Drive Pinion Bearing Shim

3723525

Mopar

Description: .025.

View Details

N/A

Drive Pinion Bearing Shim

3723528

Mopar

Description: .028.

View Details

1

Pinion Yoke Nut

6036749AA

Mopar

Description: Without Staked Pinion Nut. With Washer. .875-14. Pinion Flange. With Tag 68031427AA. Upto and Including 07-04-00.

$18.15

3

Drive Pinion Seal

52070339AC

Mopar

$25.00

4

Drive Pinion Bearing, Front

2070316

Mopar

$63.90

5

Drive Pinion Bearing Cup, Front

2070317

Mopar

$84.15

6

Parking Brake Cable, Left

68024891AB

Mopar

Description: PARKING BRAKE

$61.35

6

Axle Housing

5142347AB

Mopar

View Details

6

Axle Housing

5142347AE

Mopar

View Details

6

Parking Brake Cable, Right

68024890AC

Mopar

Description: PARKING BRAKE

$53.45

7

Axle Vent Bolt

4137696AB

Mopar

Description: .437-20x2.07. Double Ended Stud. Axle Vent and Brake Tee. Upto and Including 07-04-00.

$8.25

8

Hex Flange Head Screw And Washer, Mounting

6036671AA

Mopar

Description: .312-18x.562. Differential Cover to Housing. Differential Cover Attaching.

$0.60

9

Differential Cover

3723681AC

Mopar

Description: [dsc,ds8].

View Details

10

5013477AE - Rear Axle: Rtv Sealant for Mopar Image

Rtv Sealant ²

05013477AE

Mopar

Description: Transfer Case. Use only with 68218655ab fluid. For Differential Cover.

$37.10

11

Hex Head Bolt, Mounting

3432695

Mopar

Description: .50-13x2.38. .500-13x2.38. Carrier Bearing Cap Retaining. Carrier Bearing Cap Screws. Carrier Cap Mounting.

View Details

12

Hex Lock Nut, Mounting

6101688

Mopar

Description: Heat Sheild. M12x1.75. Heat Shield Engine Mount. Heat Shield To Engine Molunt. Hub & Bearing To Axle Housing. Shock.

$4.70

13

Wheel Speed Sensor

56044146AB

Mopar

Description: Rear.

View Details

15

Hub And Rotor Bolt

6036424AA

Mopar

Description: 16.3mm Around Serations.

$11.70

16

Wheel Hub And Bearing

52111884AB

Mopar

$497.00

18

O Ring, Mounting

52114079AA

Mopar

Description: Axle Housing Tube to Axle Housing. Hub and Bearing. Hub & Bearing To Axle Housing.

$15.80

19

Axle Rear Shaft, Left

52114076AA

Mopar

Description: [drs+ds8].

View Details

20

Ring Gear Bolt, Mounting

6509207AA

Mopar

Description: With Tag 68031427AA. With M10x1.00x21MM Ring Gear Bolts. [m10-1.00]. [dsc,ds8]. Hex Head-M10x1.00x21.00MM.

View Details

20

Ring Gear Bolt

6508058AA

Mopar

Description: Torx-Drive. Torx Head-M10x1.00x21.00MM.

View Details

22

Differential Cover Plug

52070428AA

Mopar

$12.85

23

Hex Head Bolt And Washer, Mounting

6023092

Mopar

Description: .250-20x.500. .25-20x.50. Clutch Housing Dust Shield to Clutch Housing. Dust Seal to Clutch Housing. Diff Bearing Adjusting Lock to Bearing Cap. Differential Bearig Lock.

$9.45

25

Differential Side Cup

3723569

Mopar

$56.30

26

Differential Bearing

1790541

Mopar

Description: Case Cone. Side Cone.

$104.00

28

Differential Case Assembly

52114574AA

Mopar

Description: Without Tag 68031427AA. With M10-1.00 Ring Gear Bolts With Internal Parts. [DMD,DME] With Internal Parts.

View Details

29

Drive Pinion Bearing, Rear

2800484

Mopar

Description: [dmd,dmh].

$63.35

30

Drive Pinion Bearing Cup, Rear

2800485

Mopar

Description: [dmd,dmh].

$52.70

31

Drive Pinion Bearing Shim

3723520

Mopar

Description: .020.

View Details

50

Drive Pinion Bearing Spacer

3507575

Mopar

Description: Crush.

$14.80

51

4883087AE - Rear Axle: Differential Gear Package for Mopar Image

Center Differential Gear Package

04883087AE

Mopar

Description: CENTER DIFFERENTIAL

View Details

52

Side Gear Thrust Washer Package

4883085

Mopar

Description: Also Serviced In Item 56. Also Serviced In Differential Gear Package. [-DSA].

View Details

54

Differential Pinion Shaft

52114600AA

Mopar

Description: Also Serviced In Differential Gear Package. [-DSA]. Also Serviced In Item 56.

View Details

56

Pinion Gear Thrust Washer

2852912

Mopar

Description: Also Serviced In Item 56. Also Service in Differential Gear Package.

View Details

57

Hex Head Screw

3507724

Mopar

Description: .312-18x1.80. Also Serviced in Item 56. Also Serviced in Differential Gear Package. Pinion Shaft to differential Case. Differential Shaft Lock,[-DSA]. Differential Pinion Shaft Lock.

View Details

58
